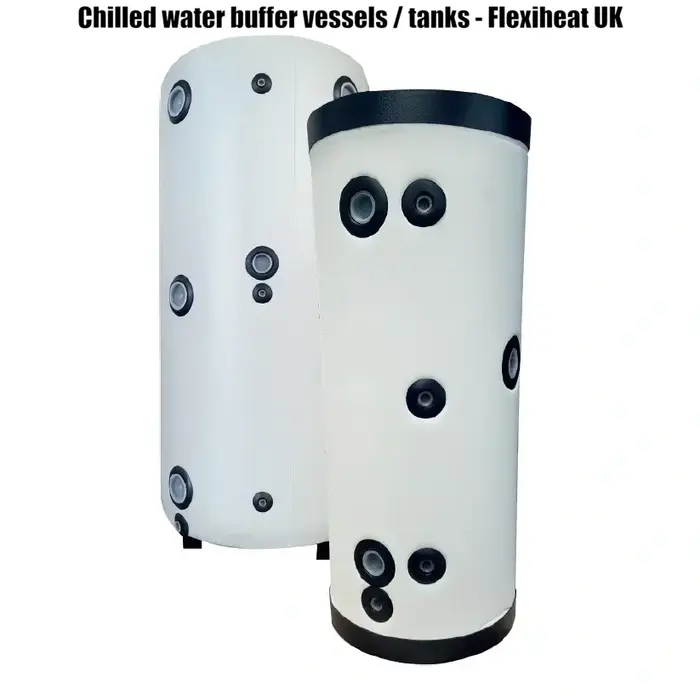

![Chilled water buffer vessels or tanks for additional system volume for chilled water HVAC systems for better temperature control and to reduce chiller cycling](https://www.flexiheatuk.com/wp-content/uploads/2024/07/Chilled-water-buffer-vessels-or-tanks-from-Flexiheat-UK-700x321.webp)

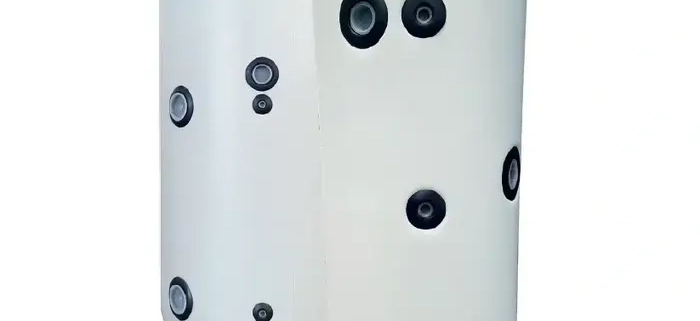

Chilled Water Buffer Vessels for Efficient Chilled Water HVAC Systems
Chilled water buffer vessels or a chilled water buffer tank help air conditioning systems’ chillers avoid excessive cycling and temperature control issues; as a solution, low water volume systems may require the installation of additional buffer capacity to prevent rapid cycling of the chiller.
The distribution system and the chillers are separated by these chilled water buffer vessels.
All our buffer tanks are in full compliance with the European PED regulations and are only to be used on a sealed system i.e. unvented systems.
Chilled water thermal storage tank fundamentals
Opposite to a heating system buffer vessels which are used to collect heat in the form of hot water from biomass boilers, a heat pump heat source or other renewable energy systems such as solar, a chilled water buffer tank or buffer vessel may also be used to balance the loads and demands of commercial operations throughout the day by adding additional volume to the chilled water system. This increases the cooling system’s durability and dependability while lowering maintenance needs.
A heat pump can be a reversible type, so it can produce heat energy via hot water for the heating system and then chilled water for cooling purposes.
How do you size a chilled water buffer vessel?
- The size of a chilled water buffer vessel depends on the chilled water system’s application, output, and additional volume demand.
- The size of the buffer tanks should be based on operation needs, installation, and maintenance requirements.
Chillers should not start more than six times per hour; some manufacturers recommend three. As a result, capacity is required to ensure that the distribution volume is large enough to handle the chiller’s thermal input. Allow 10 or even 20 minutes of minimum operating time as a rule of thumb.
For most cooling or chiller applications
The system use method requires a minimum of 4 litres per kW for air conditioning and a minimum of 7 litres/kW for process cooling buffer tanks.
A rule of thumb for sizing is to allow 2.5 to 8 litres per kW for the majority of applications and up to 14 litres per kW for the chilled water thermal storage tank when temperature accuracy is critical.
We go into full detail on buffer tank sizing for chilled water systems on this dedicated webpage – chilled water buffer tank sizing
Always take the chiller manufacturer’s recommendations or requirements as precedence, as various control systems and differences in turn-down ratios between manufactured units will mean that the thermal storage tank for chilled water system size can vary dramatically between manufacturers.
Chilled water thermal storage tank product range
We have a few options for chilled water buffer tanks, these are separated by tapping port sizes and/or the number of connecting tappings, so we can supply the ideal solution for your system requirements for additional volume.

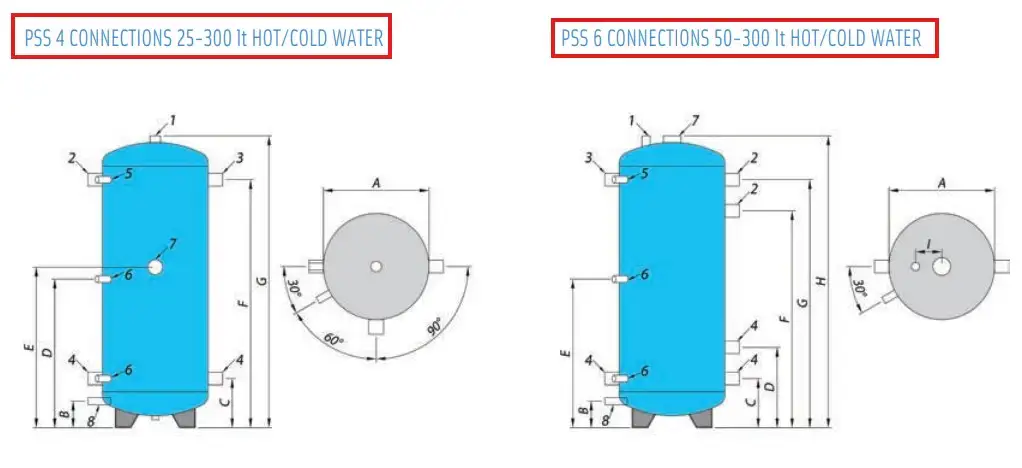

Option 1: Our “PSS” range of buffer vessels
- 6 bar working pressure rated
- 25 litre to 2,000 litre storage capacities
Then our 500 litre to 2,000 Litre “PSS” Buffer vessels

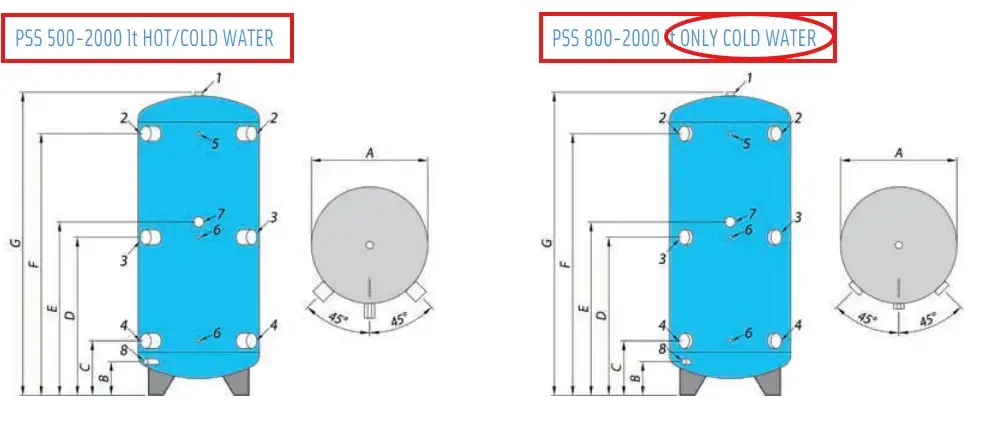

![500 to 2000 Litre PSS chilled water buffer vessels range connection details from Flexiheat UK](https://www.flexiheatuk.com/wp-content/uploads/2024/08/500-to-2000-Litre-PSS-chilled-water-buffer-vessels-range-connection-details-from-Flexiheat-UK.webp)
Our dual purpose 500 to 2000 litre buffer vessels or our dedicated chilled water option (no hot water) from 800 to 2,000 Litres
- Chilled water buffer vessels with either a four connecting tappings range or a six connecting tappings range
- Mild steel construction with the inside untreated and the outside coated.
- This buffer vessel for chilled water range conform to all parts of the European PED.
- ErP “C” or above insulation ratings, where relevant.
- Our buffer vessels feature three instrument pockets for temperature sensors or gauges, unlike our competitors’ standard two instrument pockets.
- Our chilled water buffer tank range come with insulation jackets for internal plant room use, optional ultra-volilet-resistant jackets for external mounting, or aluminium insulation shells (normally for external mounting in coastal areas) for external mounting, depending on your site requirements.
Full details on this “PSS” range of chilled water buffer vessels are here:
Option 2: Our range of ACF chilled water storage tanks –
- 10 Bar working pressure rated from 25 to 1,000 Litres
- 6 Bar rated from 1,500 to 5,000 Litres
- Mild steel or carbon steel construction
- Four connecting tappings – marked the “DN1’s “on the following diagram

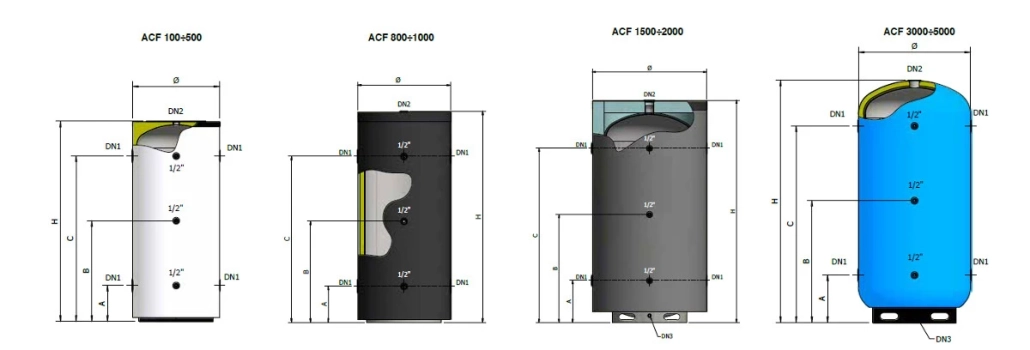

![ACF buffer vessels or tanks in mild steel for chilled or heating hot water HVAC systems from Flexiheat UK](https://www.flexiheatuk.com/wp-content/uploads/2024/08/ACF-buffer-vessels-or-tanks-for-chilled-or-heating-hot-water-HVAC-systems-from-Flexiheat-UK-1030x350.webp)
ACF range of mild steel buffer vessels or tanks for chilled water systems or hot water systems HVAC water systems.
- Removable insulation panels are on our 800 and 1000 Litre units that allow the buffer vessels to pass through a standard 800mm wide doorway.
- Three temperature sensor or gauge tapping’s (instrument pockets) on this chilled water buffer tank range
Full detail on this range of chilled watter buffer tanks is here:
Construction of the Vessels
Material Selection: Mild Steel or Stainless Steel
- Chilled water buffer vessels can be manufactured in various materials, including mild steel, carbon steel, or stainless steel. A buffer vessel for chilled water typically uses mild steel as its standard material.
- Stainless steel buffer vessels for chilled water systems benefit from increased durability when compared to mild steel buffer tanks.
The benefits of HVAC system efficiency and energy savings are significant
- Buffer vessels enhance system efficiency by reducing pump cycling and minimising energy consumption of the chiller.
- In chilled water applications, chilled water buffer vessels stop the chillers from cycling quickly.
- They prevent pressure surges and the water hammer effect, extending the lifespan of pumps and valves.
Common applications for chilled water systems
Commercial applications like large data centres and server rooms are increasingly using chilled water (CHW) systems via water cooling fan coil units,chilled beams or air handling units to cool their indoor air and equipment.
- Buffer vessels are used in HVAC systems to avoid the rapid cycling of chillers in low water volume systems.
- A chilled water storage tank are commonly used in commercial and industrial buildings, data centres, and telecommunication facilities for climate-controlled environments.
