Gas hot water tank or cylinder
Gas hot water tank or cylinder
A gas hot water tank also known as a gas hot water cylinder or gas fired hot water tank are gas fired water heaters that are storage hot water heaters. These water heaters are a solution for high flow rates or high intermittent water heating demands.
Gas water heaters with storage systems for high volumes at intermittent times demand. These condensing water heaters are energy efficient and cost effective to run.
These condensing water heaters are energy efficient gas water heaters that are used in heavy domestic, commercial or industrial applications where people want a domestic water heating device that utilizes a hot water storage tank to optimize water heating capacity and supply hot water instantly.
These gas water heaters suit applications where tankless water heaters cannot supply enough instant hot water flow rate or hot water temperature for the water heating requirements.
Sometimes these gas water heaters are referred to as a gas hot water heater tank or a gas water cylinder ultimately, they all refer to the same product, a gas hot water cylinder.
This full range use gas as the heat source and are condensing gas water heaters which reduces energy consumption, lower fuel bills, and lowers emissions.
Water heater applications
Typical applications for this range of gas fired water heaters is health centres, hairdresser saloons, pubs and leisure facilities, hotels and bed and breakfast establishments or larger properties, where hot water demand and good flow rates are essential, and they have a gas supply – either natural mains gas or LPG (liquefied petroleum gas).
These gas storage water heaters allow you to sperate your central heating system from your domestic hot water system, meaning you can achieve greater energy efficiency by only heating water in the summer months and reduce your energy bills or your customers for their water heating.
This gas fired hot water tank range can also cover a vast range of industrial applications as well, such as producing instant hot water with a storage element for food or process manufacturing that require a energy efficient and cost effective gas water storage systems for high volumes at intermittent times.
Gas fired water heaters
Our largest gas fired water heaters is designated the 50/330 – This 50kW condensing gas-fired direct water heater that raises water from 10°C to 60°C on demand, providing domestic hot water at a rate of 871 litres per hour while maintaining outstanding efficiency and low NOx emissions that comply with ErP regulations for heating water. This gas water heater features a 330-liter storage tank / hot water cylinder with a fully enamelled heat exchanger enclosed therein for heating water, and it has a 50kW power output from a pre-mix gas burner (natural gas or LPG options).These are commercial water heaters for high demand hot water applications.
Flow data at a storage hot water temperature of 60C – incoming cold water temperature of 10C – mixed hot water temperature of 38C
Features of this 50kW gas water heater with storage hot water cylinder
- Energy efficiency class “A” – Load profile XXL – Up to 101.5% nett combustion efficiency
- Anti-freeze and Anti-Legionella functions built-in to these water heaters
- Fully ErP compliant with low NOx emissions of 39mg/kWh
- Mains gas (natural gas) or LPG powered options
- 20% Hydrogen gas mix compliant
- Enamelled lined tank /hot water cylinder with dual impressed current cathodic protection
- Multiple flue options for ease of installation
Download the 50kW Gas condensing storage water heater brochure – HY model – Flexiheat UK
Download the 50kW gas storage condensing water heater manual Flexiheat UK

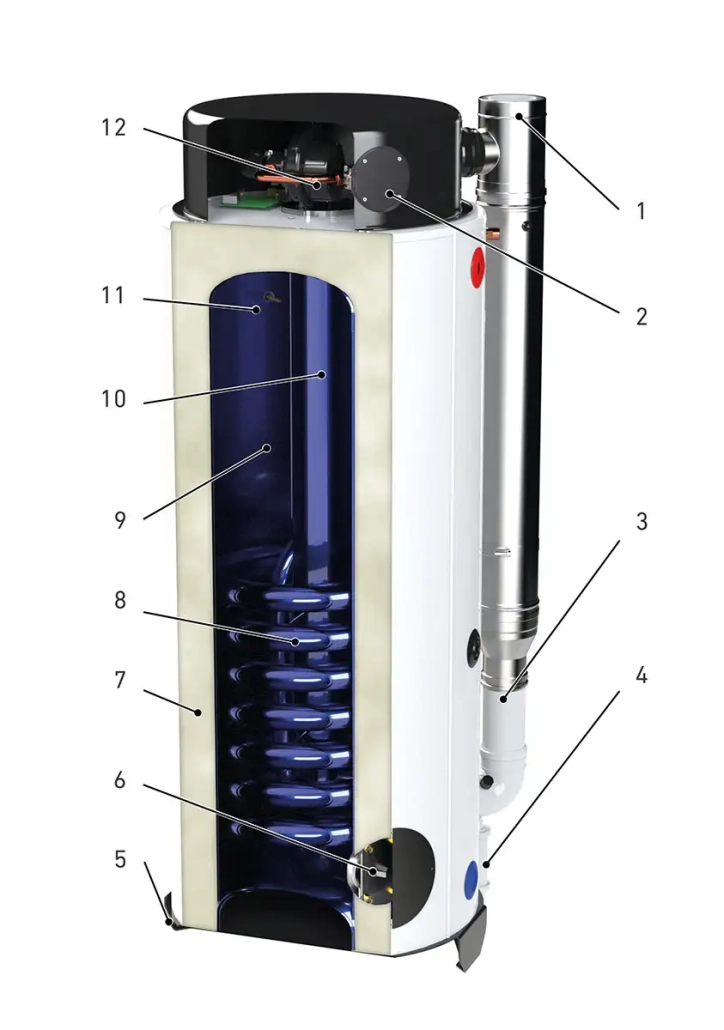

50kW condensing gas fired water heaters components
- Flue system outlet Ø 100 / 150mm
- Gas valve and regulation
- Flue system inspection
- Condensate drain
- Base of the
- Tank inspection flange
- Polyurethane foam insulation
- Enamelled heat exchanger
- Double electronic anode
- Combustion chamber
- Temperature & Pressure valve
- Premix burner
Then our “SFKA” Range of gas water heaters
This gas condensing water heaters range is designed to store 150 litres of domestic quality water at a hot water temperature of 60C or above in the water storage cylinder, this instant DHW is then available to the installation when there’s a demand from the showers, baths, or hot water taps, with good flow rates.

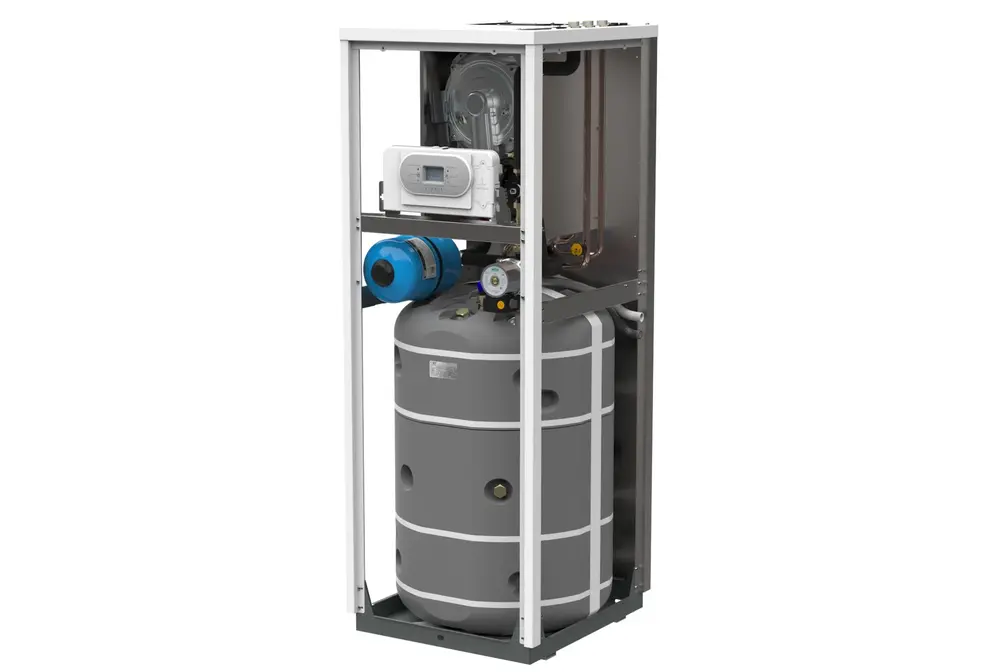

Internal picture of our storage gas water heaters
We do two main types or models, a 28kW gas water heater or a 34kW gas water heater
Our 28 kW output gas fired water heaters with its 150-litre stainless steel hot water cylinder (storage tank) will provide a continuous D.H.W. supply at a 30°C temperature rise of mixed water with a first 10-minute flow of 305 litres and a one hour flow rate of 984 litres.
Full detail on this gas water heater is here
Flexiheat SFKA 28.150 Condensing gas storage water heater – Hot water tanks Manual
Or
Our 34 kW output gas fired water heaters with its 150-litre stainless steel hot water cylinder (storage tank) will provide a continuous D.H.W. supply at a 30°C temperature rise of mixed water with a first 10-minute flow of 333 litres and a one hour flow rate of 1,167 litres.
Flexiheat SFKA 34.150 Condensing gas storage water heater – Hot water tanks Manual
This gas water heater range is a condensing high-efficiency storage water heater that is room-sealed, meaning these gas water heaters may be installed practically anywhere thanks to its flexible flue / vent pipe options. Making installation of this range of energy efficient condensing water heaters with hot water storage systems quick and easy in any commercial or heavy domestic site.
Condensing water heaters
As our gas fired water heaters range are condensing water heaters, you’re getting many benefits with a reliable and efficient hot water installation, with the benefit of lower energy consumption. They are as such hybrid water heaters, with a tankless water heater which are condensing water heaters combined with a storage tank.
Gas water heater features
Our commercial, or heavy domestic gas water heaters range features
- Our heat exchanger is produced in stainless steel and has large single-tube coils with a diameter of 28 mm. Because of this, it has very low pressure drops, which means it is less likely to get clogged, uses heat more efficiently, and is easier to clean.
High DHW performance gas water heater with tank
- The domestic sanitary water temperature adjustment ranges from 40 °C to 60 °C
- Anti-legionella system;
- These are condensing water heaters – being highly energy efficient and thus cost effective to run.
- Possibility of recirculation or direct feed for high volumes of demand at intermittent times with our gas water heater with tank range.
- Remote management and control of these gas fired water heaters is possible via 0-10 volts or via our Opentherm thermostat and controller with an app that allows you to control the gas water heater from a phone, tablet, or PC.
- Integrated post-circulation for excess heat disposal to help save energy.
- Self-diagnostic electronic board with frost protection
- Integrated recirculation function for immediate DHW delivery;
- Fast H2O pre-heating for efficient and instant hot water without waiting.
- Electrical systems protection level is IPX5D
- Very low NOx emissions, maximum 50 mg/kWh for this gas fired hot water cylinder range.
- Suitable Anode to protect the storage tank.
- Available in natural gas (mains gas) or LPG
- Can even be used in industrial applications for decentralised water heating with our gas fired hot water cylinder range.
Dimensions of our water heaters gas fired
Both water heaters gas fired have the same dimensions occupying a small space or footprint.
Contact us
Whether you a new customer or a trade account, should you require anymore assistance, information, check stock or get a recommended price / cost on our cost effective gas hot water tank or gas fired hot water cylinder range in natural gas (mains gas) or LPG on the UK market with fast delivery times, please contact our customer services sales team on 01202 822221 or use our email contact above on the web page for our email form.
