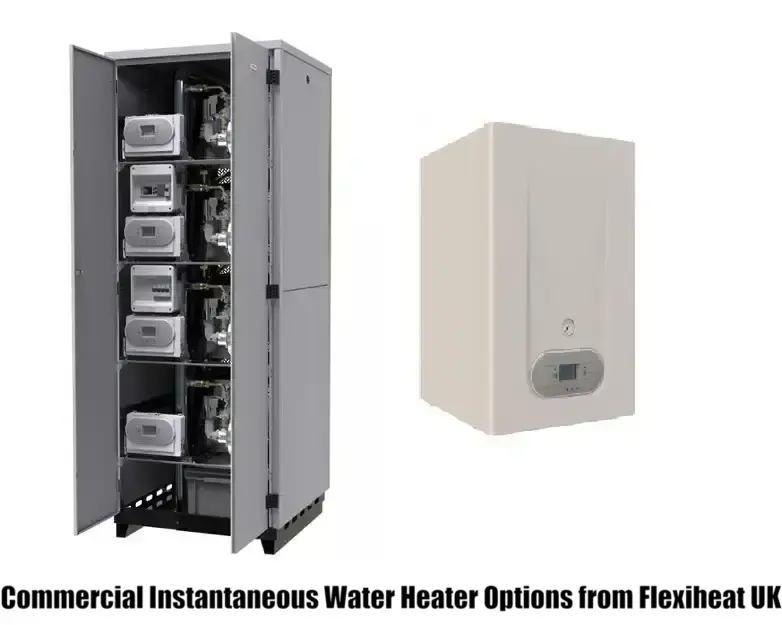

Commercial instantaneous water heater options for reliable commercial water heating solutions

Commercial instantaneous water heaters,are often called commercial tankless water heaters or commercal on demand water heaters as they provide domestic hot water , without storage on demand for commercial premises in an energy efficient manner.

By far the most popular type of tankless water heaters for large communal residential and commercial applications, are gas fired units due to the output you can achieve from a relatively small gas pipe size.

Flexiheat UK offer instantaneous water heaters with power ratings of up to 200kW in single units and power ratings of up to 400kW in a cascade on demand water heaters configuration.

Typical applications for these instant water heaters include hotels, gyms, healthcare,process, bars, restaurants, brewing, food production, and farming which require a consistent supply of  heated water.

Benefits of Instantaneous Commercial Water Heaters

• Provide a reliable and energy efficient hot water supply for commercial premises.
• Instantaneous water heaters reduce operating costs and environmental impact with energy-efficient technology
• Increase customer satisfaction with a consistent hot water flow with precise temperature control
• Lare power ratings / Outputs – suitable for various commercial hot water heating applications, including restaurants, hotels, and hospitals
• Cost effective / operating costs – The energy efficiency of instantaneous water heaters can be 24%–34% higher than that of traditional storage tank water heaters.Source Energy.gov
• When combined with other heating systems, a commercial water heater, in particular instantaneous water heaters, provides a comprehensive solution.
• This commercial on demand hot water heater range can provide hot water in very large volumes in an energy efficient manner for any commercial premises or to heat water for a process application.
• With an instant water heater / instant hot water heaters, you only heat water when required with high energy efficiency which reduces the energy consumption and energy bills for your hot water system.

Types of Commercial Water Heaters

Tankless water heaters: provide hot water on demand without the need for a storage tank

Instantaneous water heaters: heat water as it flows through the unit, providing a continuous hot water supply

The two types of water heaters mentioned above are identical. It’s just terminology; they are both commercial instantaneous hot water heaters.

Electric models: offer slightly greater energy efficiency and are only really suitable for smaller commercial demands due to the requirements of a 3-phase power supply and the Amps required to heat water.Also operating costs are more for electric powered water heaters.

Gas water heaters:are the most popular and cost-effective option for commercial water heaters/ instantaneous water heaters.

Product Selection and Recommendation

• Collect information about your commercial application, including hot water heating demands and power requirements (especially for electric models)
• Consider the specific needs of your commercial water heating demands when selecting a water heater

Our commercial tankless water heaters options

When a commercial instant water heater,tankless water heater or on demand water heaters have a kW rating of 50 kW or above for gas-fired units, we consider them a commercial water heater.

First we have our 50kW commercial tankless hot water heater

This commercial instant water heater benefits from a stainless steel heat exchanger featuring large 28-mm single-piece coils that provide very low pressure drops, less chance of clogging, more thermal efficiency, and easier cleaning.

This 50kW commercial instantaneous hot water heater features an inbuilt pump, which can be switched on or off depending on your system requirements, i.e., straight through on demand water heating or DHW recirculation heating system.

Internal picture of our 50kW commercial tankless hot water heater with stainless steel heat exchanger and inbuilt recirculation pump that allows a DHW recirculation system for instant hot water at the taps / showers etc.

Hot water performance i.e. flow rate of our gas fired 50kW commercial tankless hot water heater, at various temperature rises- shown as Delta T  i.e. “Δt ”

The dairy, brewing, food processing, and agricultural sectors, as well as other applications requiring high-temperature water for washdowns, pasteurization, or process water,and commonly use this 50kW commercial instantaneous water heater / agricultural water heaters as they are capable of producing a maximum water temperature of 85°C.

Features and benifits

• The 50kW commercial on demand hot water heater will modulate up to 10:1 for increased efficiency and lower energy consumption.
• Producing a steady supply of heated water, as they heat water ‘instantly’ as it flows through these 50 kW gas fired commercial instant hot water heaters
• Our commercial gas tankless water heater uses patented advanced burner technologies with a compact design.
• This commercial instant water heater has an integrated recirculation pump allowing the choice of direct flow through mode (draw) or a DHW recircualtion mode for immediate DHW supply.

Possible operating modes of our 50kW commercial tankless hot water heater – Direct (draw mode) with option of post circulation and DHW recirculation via the inbuilt DHW pump.

Download the SFK50 – 50kW Commercial instantaneous hot water heater manual Flexiheat UK

Please note –

If the commercial gas tankless water heater needs to operate at temperatures higher than 60 °C, the hardness of the water must be less than 150 PPM.

The amount of carbonate, calcium, and magnesium minerals in water is measured to determine its hardness –  75 to 150 ppm is regarded moderately hard for reference.

Also on the other scale, do not soften the water to levels lower than 50 PPM, it turns acidic at these levels and may decrease the instant hot water heater’s lifespan by corroding parts of it.

Larger industrial and commercial instantaneous water heaters

In order to consistently satisfy instantaneous large capacity commercial and industrial domestic hot water (DHW) demands, we developed the “SFKG” family of floor-standing, high-efficiency condensing gas water heaters with a space saving design.These are an industrial tankless hot water heater range with very large domestic hot water heating performance.

Large instantaneous gas water heaters- condensing in cascade in one self-contained floor standing unit ,150kW or 200kW from Flexiheat UK

Instantaneous water heaters – ideal for both new and existing buildings with domestic hot water systems, such as hotels, restaurants, schools, hospitals, apartment buildings, and spas and leisure centres, that require instant water heaters.

High capacity instantaneous DHW systems

A compact single floor-standing gas fired commercial water with either three (150 kW model) or four (200 kW model) load-balanced 50 kW stainless steel heat exchangers within the casing that guarantees even wear along with integrated redundancy as standard making these instant hot water heaters well suited for commercial settings.

SFKG – our Industrial on demand hot water heater range in 150kW or 200kW single units – 400kW in casacde.

Multiple heat exchangers within one water heater casing will consistently ensure operational continuation in the event of maintenance or malfunctions.

With built-in redundancy that ensures service continuity and multiple (three for the 150kW model or four for the 200kW model) integrated heat exchangers providing load balancing for optimum long-life operation.

Designed to provide hot water for both new and existing buildings domestic hot water systems, such as hotels, restaurants, schools, hospitals, apartment buildings, spas, leisure centres, or any other businesses that require high levels of hot water for their customers or process applications such as agricultural water heaters.

Download the  SFKG150 and 200kW Gas instantaneous commercial water heaters brochure from Flexiheat UK

Features and benefits

• Compact floor-standing configuration instant water heaters which are condensing water heaters.
• 107.50% energy efficient at full power and 112% energy efficient at minimum power.
• Both LPG and natural gas versions are available of these instant water heaters.
• High-capacity instantaneous production of domestic hot water for commercial or industrial use.
• Multiple stainless steel heat exchangers (the SKFG150 has three and the SFKG200 has four) provide built-in redundancy.
• A high-efficiency pre-mix burner provides a large modulation range; the 150kW model has a 30:1 modulation range, and the 200kW model has a 40:1 modulation range.
• 5 year warranty on the heat exchanger (subject to terms and conditions), 2 year warranty on all other parts for these commercial water heaters.
• The heat exchangers’ large 28 mm diameter ensures very low pressure drops, lower risks of clogging, greater thermal efficiency, and greater ease of cleaning.
• We recommend softening the water to a maximum hardness of 100 ppm if the total hardness of the water supply exceeds 150 ppm if the water heaters are water heating at a water temperature above 60 °C.
• Maximum working pressure 8 bar (10 bar at special request), minimum working pressure 0.5 bar for this range of commercial water heaters.

Industrial instant hot water heater / Industrial inline water heater providing energy efficient and cost effective domestic hot water heating for industrial hot water heating systems.

150kW Industrial tankless water heater, gas-fired – hot water performance flow rate data – at various Delta T

This 150kW industrial and commercial on demand gas water heater delivers exceptional instant hot water performance. A standard shower head has a flow rate of 7 litres per minute. In the winter, the temperature of the cold water mains is 10 degrees Celsius for the majority of the UK, while the showering temperature is 40 degrees Celsius, resulting in a temperature rise of 30 degrees. This 150kW commercial instantaneous hot water heater will supply 10 showers with continuous hot water if you have the water flow rate and gas supply required.

200kW Industrial tankless water heater, gas-fired – hot water performance flow rate data – at various Delta T

Just to give you an idea of the incredible instant hot water performance of this 200kW industrial and commercial on demand gas water heater. A standard shower head has a flow rate of 7 litres a minute. In the winter the cold-water mains temperature is 10 Degrees C for the majority of the UK, and the showering temperature is 40C, thus a temperature rise of 30C. This 150kW commercial instantaneous hot water heater will supply 14 showers with continuous hot water, if you have the water flow rate and gas supply required.

Residential vs. Commercial Applications

The design of commercial water heaters meets the higher hot water demands of commercial water heating requirements.

Residential water heaters are often not suitable for commercial use due to lower power ratings and flow rates required to heat water in domestic applications.

We provide a comprehensive range of gas on demand water heaters to provide hot water for homes, apartments, and smaller projects. You can find more information about these on our dedicated webpage: instantaneous gas water heaters

Hydrogen ready water heating equipment

We have designed all of our commercial instantaneous hot water heaters to be hydrogen-ready and capable of operating on a 20% hydrogen blend, facilitating a seamless transition to zero-carbon emissions.

Commercial Water Heater Installation and Maintenance

• Ensure proper installation by a qualified gas safe heating engineer to ensure safe and efficient operation.
• Regular maintenance is necessary to extend the lifespan of any commercial water heaters and prevent costly repairs or downtime.
• Consider the installation and maintenance requirements of the commercial water heater, such as clearances, flue system requirements, etc.

Contact us

When you specify and install a Flexiheat energy efficient commercial and industrial on demand water heater, you can be confident that you will be getting the most durable, trouble-free water heater available.

Should you require further assistance or information on our commercial instantaneous water heater range, then please contact our sales team on 01202 822221 or click here for our email contact form.
