2000 Litre Buffer tank or Vessel
2000 Litre buffer tank or vessel
What is a buffer tank?
First, we must clarify what a buffer tank does, as they are ideal for use in renewable and traditional heating systems, including gas, biomass, or oil boilers, as well as solar thermal and heat pumps (both air source and ground source heat pumps).
Definition and purpose of buffer tanks
A buffer tank retains thermal energy via thermal storage for later use and can supplement the heat source when demand is high or store heat (heat sink) when demand is lower. Stored energy in the form of heat can be immediately accessed without the heat source needing to get up to temperature, which is useful for maintaining a constant output over time for your heating hot water systems.
The benefits of using buffer tanks in heating and cooling systems
Buffer tanks provide a reliable and efficient heating solution because they store heat for later use by the heating system. They can decrease the number of on/off cycles of the heat pump due to stored heat in the buffer tank or vessel.
For chilled water thermal storage systems, which are often used in air conditioning systems to improve thermal inertia, the buffer tank is insulated in such a way as to keep the temperature as low as possible.
All of our buffer tank ranges have high thermal insulation levels and comply with the ErP insulation requirements, which cover buffer tanks up to and including buffer vessels or tanks up to 2,000 litres in volume.
Conformity to standards
All of these buffer tanks comply with both Article 4 , Paragraph 3 of the Pressure Equipment Directive (PED) 2014/68/UE and the ErP Directive EU 812/2013 for energy-related products.
Buffer tank options for 2,000 liters of heated or chilled water
We have two main options: hot water storage (2000 litres) or chilled water storage (2000 litres).
Option 1
Our “PSS Buffer Tank Range” has two standard options: one buffer tank that is suitable for both heating and chilled water systems, and one buffer tank that is only suitable for chilled water systems.

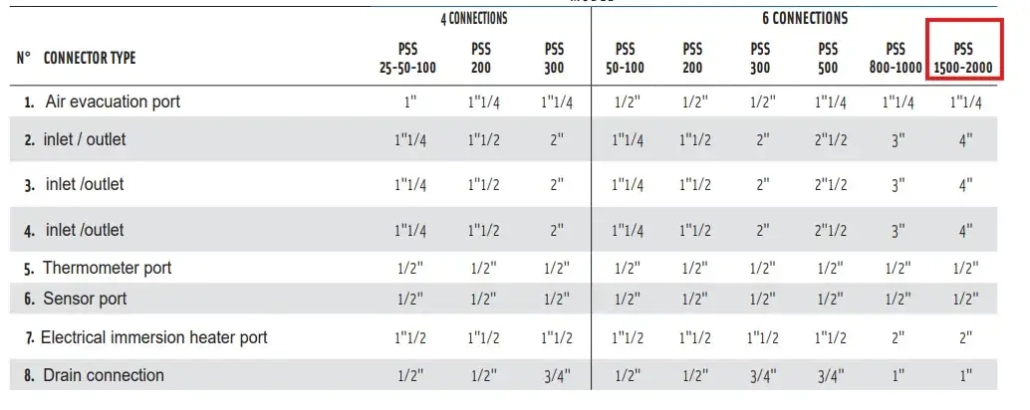

Both options have six x 4″ female BSP tappings and 3 x 1/2″ female temperature probe or gauge ports on the buffer tank.
With a maximum working pressure of 6 Bar and maximum temperature of 95°C for both buffer tank options.

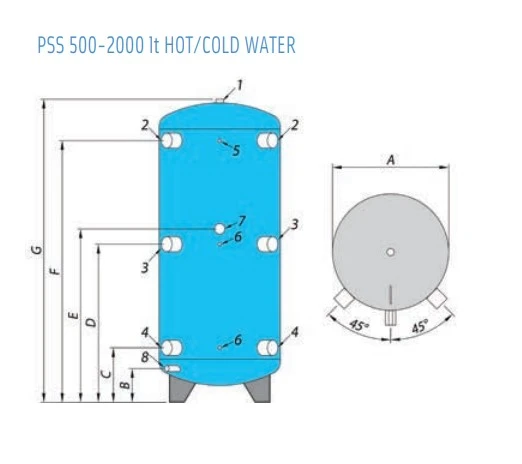

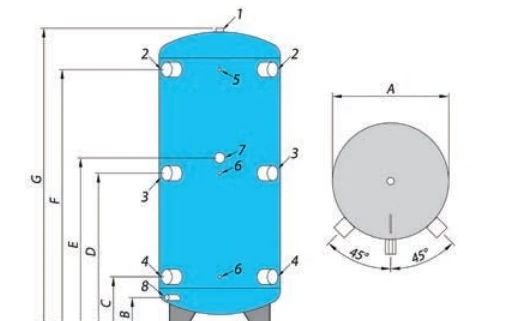

2000L Heating or Chilled water buffer tank -PSS range with 6 connections
The heating and chilled water version has 80mm polyester with 20mm PEXL insulation. This is a polyethylene foam that stops water vapour diffusion, protecting the buffer tank exterior from dew and corrosion. Because of its extremely low water absorption, the lagging effectively doesn’t absorb any water. This results in a class “C” ErP insulation level for the material.
Both the 1,500 Litre and 2000 Litre buffer tanks – have the same connection sizes.6 Bar working pressure (unlike many of our competition which only offer 3 Bar working pressure)
Since chilled water units do not fall under the ErP regulations, the chilled water buffer tank option only has 25-mm PEXL insulation.
Option 2
Our “MV” or “MXV” range of buffer tanks is for both closed heating and cooling systems.
MV or MXV buffer tanks
Both buffer tank options are rated to:
Maximum working pressure: 6 bar
Maximum working temperature: 110 ºC
The “MV” buffer tank range is manufactured in mild steel, while our “MVX” buffer tank range is manufactured in 304 stainless steel and offers higher durability and resistance to corrosion.
These tanks are thermally insulated with rigid, mould-injected (this system guarantees a perfectly regular insulation thickness with optimum material density), 80mm thick PU polyurethane foam insulation, with an insulation piece on the optional 400mm side manhole on the “IB” models. This thermal insulation is both CFC- and HCFC-free and fire-resistance class B-s2do according to EN 13501.
The products are ERP-compliant, offers a “C” rating as standard (EU 812/2013), and come with three years warranty.

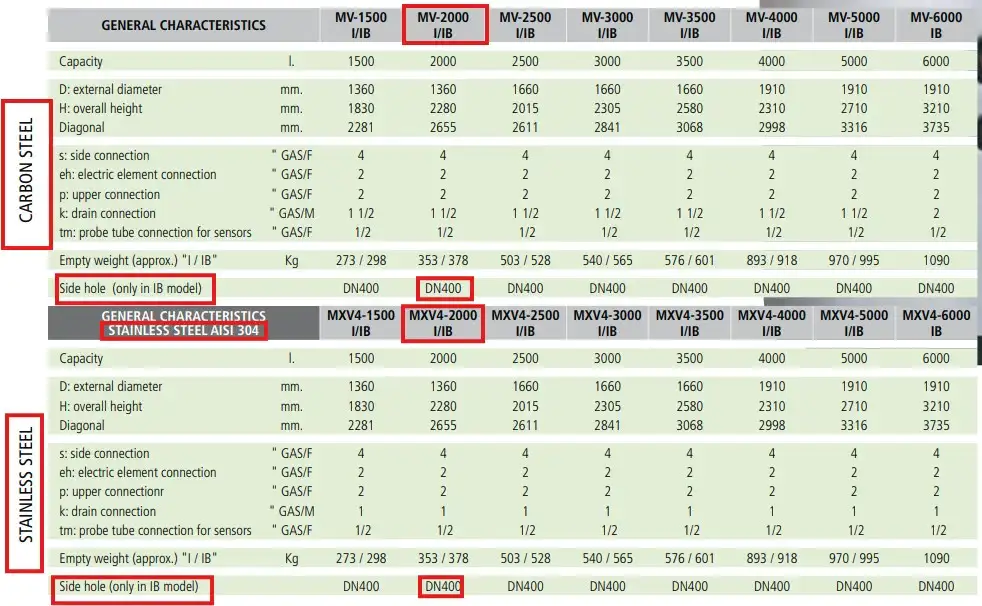

Technical data for MV and MXV units

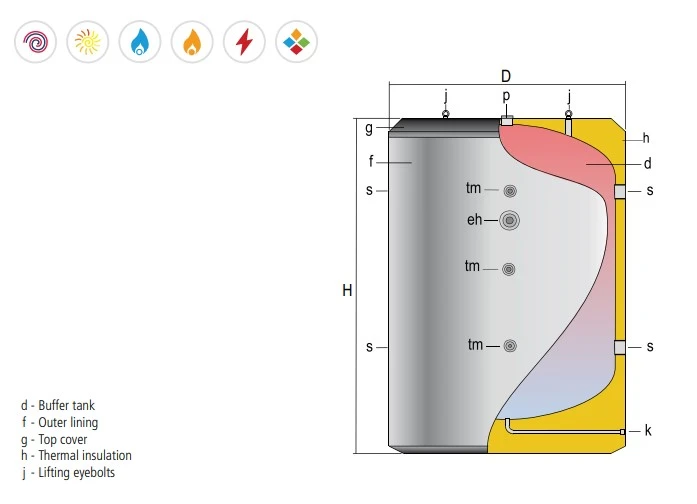

Both buffer tank options come with four x 4″ female BSP tappings (designated “S” on the above drawing) and various other tappings for temperature probes or sensors, temperature gauges, or working pressure sensors or gauges to be fitted to the tank.
“I” model – no clean out port – “IB” with 400mm clean out port
The buffer tank can optionally be supplied with a “UV” restitant PVC-padded external lining or “ALUNOX” aluminium sheet covering for external use. This is typically required or standard in coastal areas of the UK to prevent seagulls from pecking at the buffer tank’s insulation.
Each buffer tank option comes with a tapping for a backup electric immersion heater to be fitted to the tank if so required.

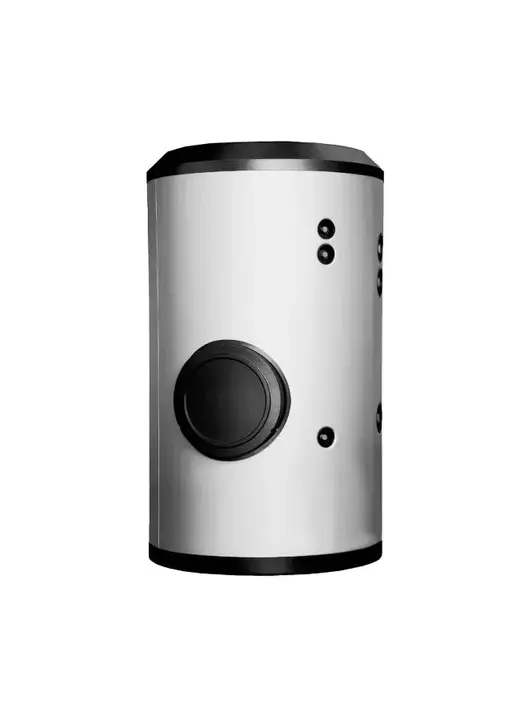

IB Version – with inspection and maintenance manhole.
IB MODELS: A side 400mm manhole provides access to the inside buffer tank for tasks such as inspection, cleaning, and maintenance.
These buffer tanks are detailed on page 11 of the following brochure:
Heat Exchanger Coil Options
We also do a range of buffer tanks that have an intermediate coil or coils within the tank to hydraulically separate the heating or cooling source from the water in the buffer tank. You can think of these as large “low loss headers” or an indirect water heater which offers the guarantee that any heating system sludge from an existing system is prevented from entering the heat pumps, biomass boilers, solar, or geothermal systems.For further information on this range of buffer tanks please see here: Buffer tank with coil or twin coils
Please note that these are not domestic hot water cylinders for the production of domestic hot water for commercial water heating; we supply these water heaters or calorifiers, and these are listed on this webpage: commercial domestic hot water calorifiers
System requirements and compatibility: ensuring the right fit
The system requirements and compatibility of the buffer tank should be considered, including the working pressure, insulation,insulation and tappings.
These buffer tanks are ideal for the specific application, whether it’s for biomass, air source heat pump, ground source heat pumps and gas, wood pellet, gasification, or oil boilers.
The budget and cost of the buffer tank should be considered, including the price of the tank and any additional features required.
Regular maintenance and upkeep of the buffer tank
Regular maintenance and upkeep are essential to ensure the longevity of the buffer tank. Tips for maintenance include checking the tank’s insulation and working pressure.
Contact us
At Flexiheat UK, our technical sales staff are available to provide support, further information, or to place an order for our 2000 Litre buffer tank or vessel options for hvac systems. Speak to us on 01202 822221 from Monday to Friday, 9 a.m. to 5 p.m., or email us via our Contact Page.
